From: Fully quantitative mapping of abnormal aortic velocity and wall shear stress direction in patients with bicuspid aortic valves and repaired coarctation using 4D flow cardiovascular magnetic resonance

Fig. 3

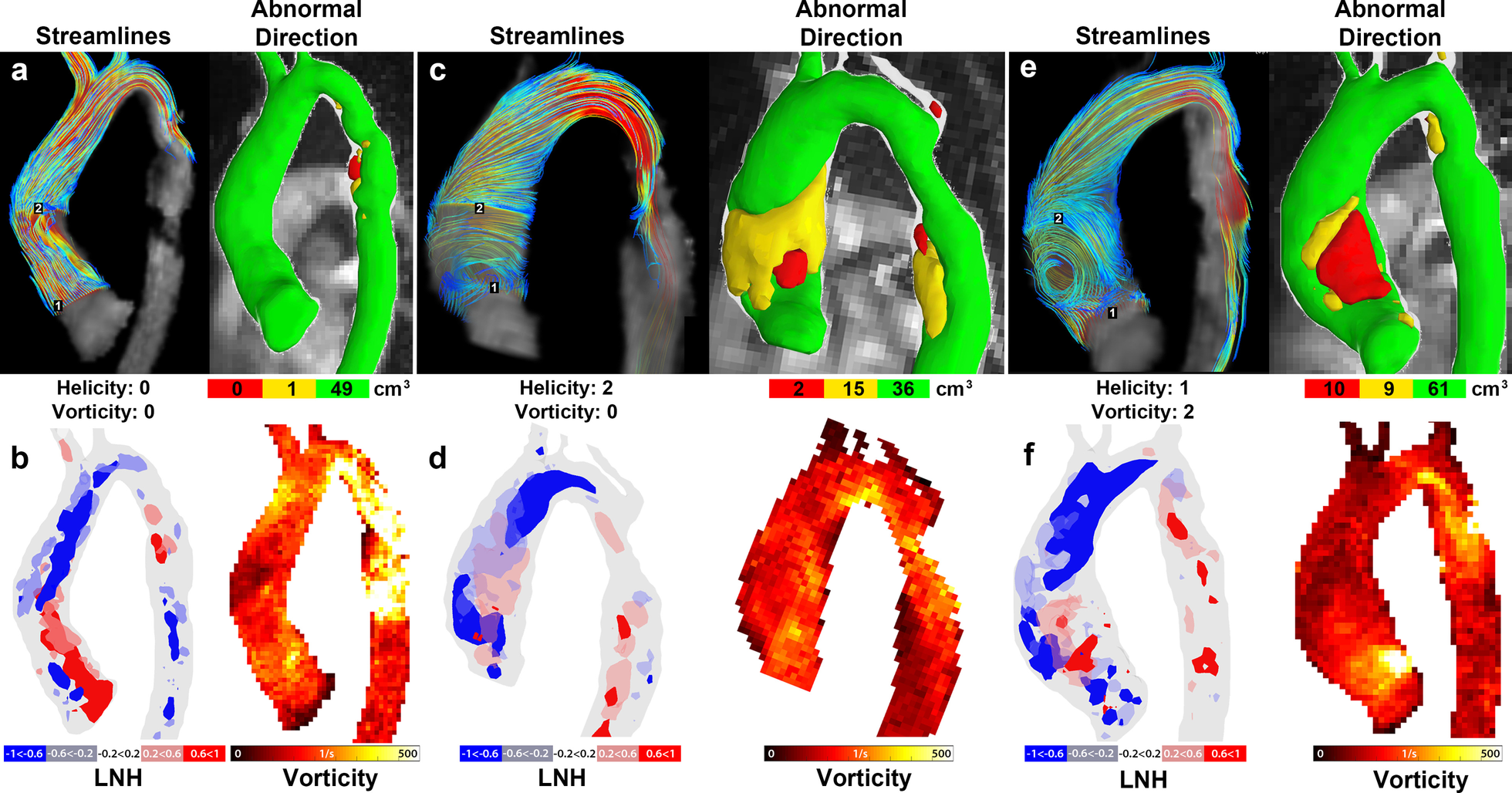

a, c and d streamlines, abnormal direction maps [laid over a maximum intensity projection of the phase contrast (PC) CMR angiogram A] in three patients with BAV and repaired coarctation, and b, d and f corresponding local normalized helicity (LNH) maps and vorticity maximum intensity projections (MIPs)
